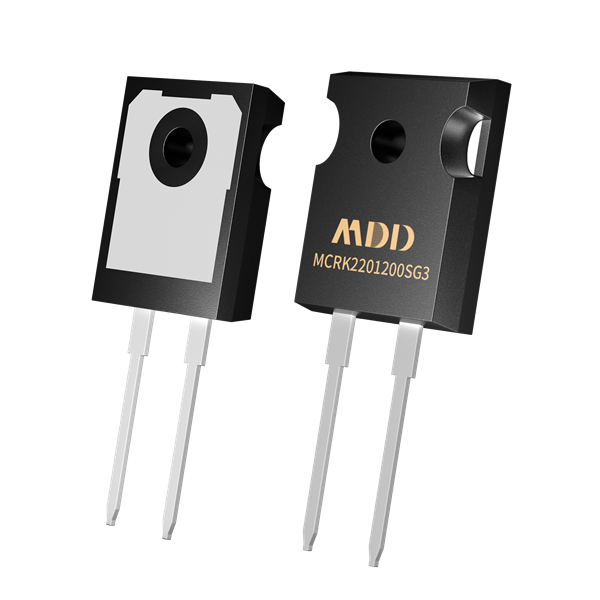

MCRK2201200SG3

MCRK2201200SG3

Status: Active
Package Type:
TO-247-2L
Packing Info:
/
Category:
Single SiC Schottky Diodes
Product Detail
Part Number Product status Number of
Functions
Max.Reverse Voltage
VRRM (V)
Max.Fwd.Voltage TA=25℃
VF(V)
Max.Fwd.Voltage TA=25℃
lF(A)
Package Junction Temperature Maximum Reverse Leakage  IR (μA) Fwd.Current
@Tc≤135℃lF(A)
Peak Fwd. Surge Current
Tc=25℃, tp=10ms, Half Sine Pulse
IFSM(A)
Total Capacitive Charge
Qc(nC)
MCRK2201200SG3 Active Single 1200 1.8 20 TO-247-2L -55 to 175℃ 200 26 130 99
Packing Information
Part Number Package Type Packing Specification Marking Code Packing Info
MCRK2201200SG3 TO-247-2L TO-247-2L /
