| Part Number | Product status | Number of Functions |
Peak Pulse Current IPP (A) | Package | Junction Temperature | Polarity | Peak Power Dissipation PPP(W) |
Reverse Stand-off Voltage VRWM (V) | Breakdown Voltage VBR(V) |
Maximun Clamping Voltage VC(V) | Maximum Reverse Leakage IR (μA) | Junction Capacitance CJ (pF) | ESD level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

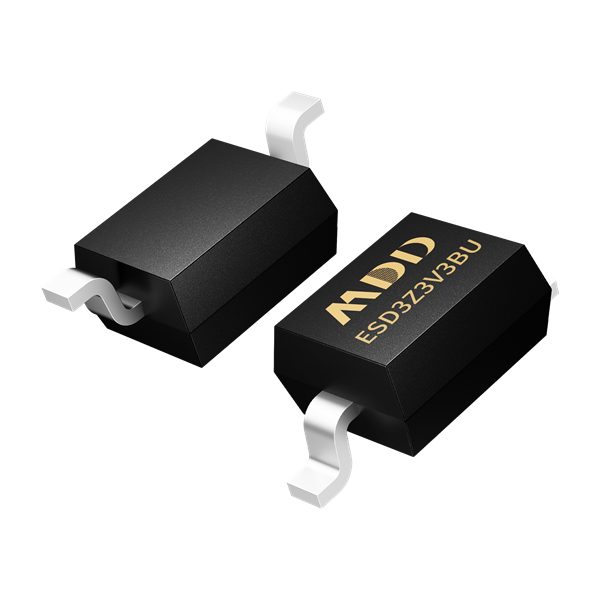

| ESD3Z3V3BU | Active | 1 | 4 | SOD-323 | 150℃ | Bi | 100 | 3.3 | 4.2 | 25 | 0.1 | 0.25 | Con 20KV/Air20KV |
