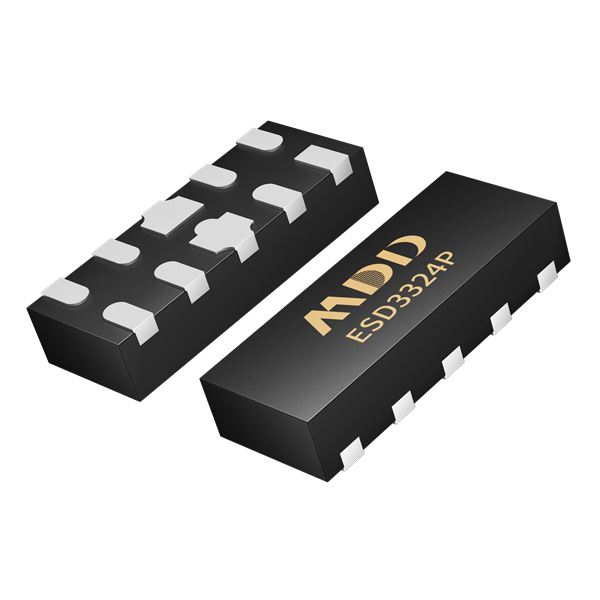

ESD3324P

ESD3324P

Status: Active
Package Type:
DFN2510-10L
Packing Info:
Category:
Electrostatic protection diode
Product Detail
Part Number Product status Number of
Functions
Peak Pulse Current IPP (A) Package Junction Temperature Polarity Peak Power Dissipation
PPP(W)
Reverse Stand-off Voltage VRWM (V) Breakdown Voltage
VBR(V)
Maximun Clamping Voltage  VC(V) Maximum Reverse Leakage  IR (μA) Junction Capacitance CJ (pF) ESD level
ESD3324P Active 4 4 DFN2510-10L 125℃ Uni. 56 3.3 4.2 14 1 0.4 Con20KV/Air25KV
Packing Information
Part Number Package Type Packing Specification Marking Code Packing Info
ESD3324P DFN2510-10L DFN2510-10L
