Product Detail

Part Number	Product status	Number of Functions	Package	Type	V_GS(V)	ESD	Junction Temperature	B_VDSS(V)	I_D(A)	RDS(ON) (mΩ) VGS=10V Typ.	RDS(ON) (mΩ) VGS=10V Max.	RDS(ON) (mΩ) VGS=4.5V Typ.	RDS(ON) (mΩ) VGS=4.5V Max.	RDS(ON) (mΩ) VGS=2.5V Typ.	RDS(ON) (mΩ) VGS=2.5V Max.	VGS(th) (V) Min.	VGS(th) (V) Max.
MDDG10R08G	Active	Single	PDFN5*6-8L	N	±20	N	-55 to 150℃	100	70	7	8	8	10	一	一	1	2.5

Packing Information

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
MDDG10R08G	PDFN5*6-8L	PDFN5*6-8L		5K/盒 50K/箱

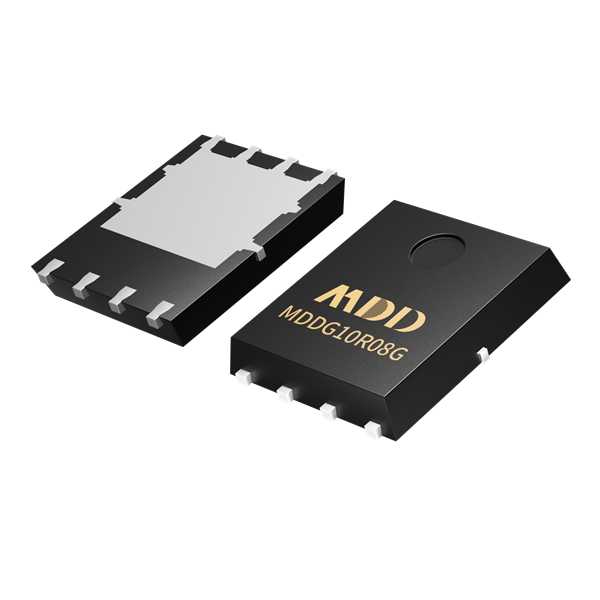

MDDG10R08G
