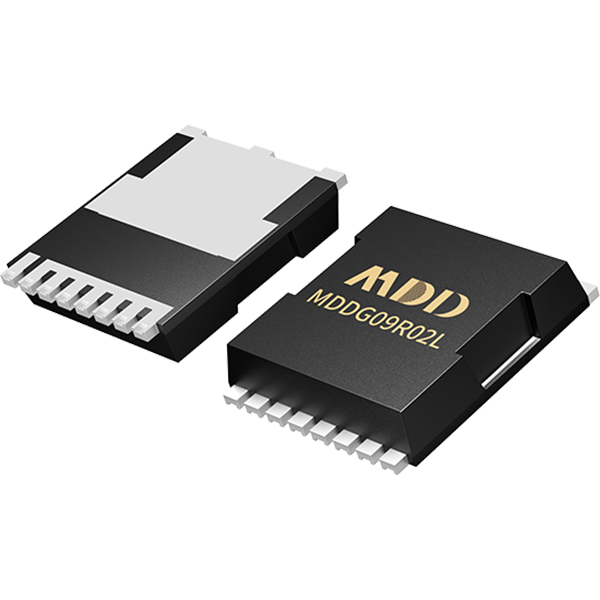

MDDG09R02L

Status: Active

Package Type:

TOLL

Packing Info:

2K/盘,80K/箱

Category:

Low-and Medium-Voltage MOSFETs

Part Number	Product status	Number of Functions	Package	Type	V_GS(V)	ESD	Junction Temperature	B_VDSS(V)	I_D(A)	RDS(ON) (mΩ) VGS=10V Typ.	RDS(ON) (mΩ) VGS=10V Max.	RDS(ON) (mΩ) VGS=4.5V Typ.	RDS(ON) (mΩ) VGS=4.5V Max.	RDS(ON) (mΩ) VGS=2.5V Typ.	RDS(ON) (mΩ) VGS=2.5V Max.	VGS(th) (V) Min.	VGS(th) (V) Max.
MDDG09R02L	Active	Single	TOLL	N	±20	N	-55 to 150℃	90	160	1.3	1.9	一	一	一	一	2	4

Part Number

Product status

Number of
Functions

Package

Type

V_GS(V)

ESD

Junction Temperature

B_VDSS(V)

I_D(A)

RDS(ON) (mΩ) VGS=10V
Typ.

RDS(ON) (mΩ) VGS=10V
Max.

RDS(ON) (mΩ) VGS=4.5V
Typ.

RDS(ON) (mΩ) VGS=4.5V
Max.

RDS(ON) (mΩ) VGS=2.5V
Typ.

RDS(ON) (mΩ) VGS=2.5V
Max.

VGS(th) (V)
Min.

VGS(th) (V)
Max.

MDDG09R02L

Active

Single

TOLL

±20

-55 to 150℃

160

1.3

1.9

一

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
MDDG09R02L	TOLL	TOLL		2K/盘,80K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

MDDG09R02L

TOLL

2K/盘,80K/箱
