Product Center

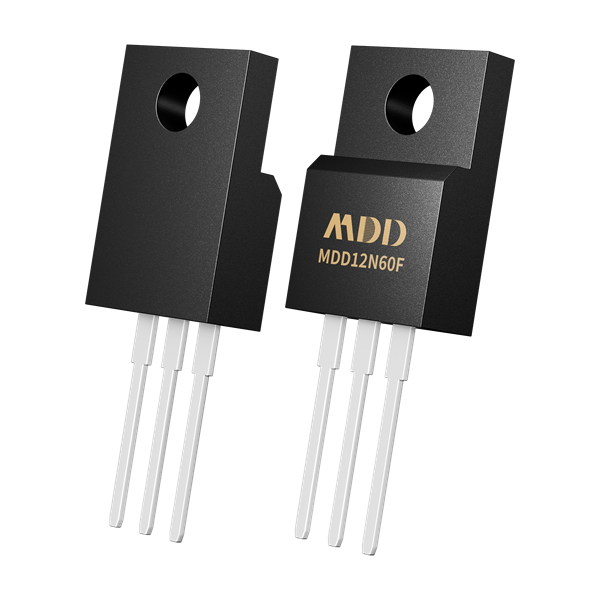

MDD12N60F

Status: Active

Package Type:

TO-220F

Packing Info:

50PCS/管 5K /箱

Category:

High-Voltage MOSFETs (≥400V)

Part Number	Product status	Number of Functions	Package	Type	V_GS(V)	Junction Temperature	I_D(A)	RDS(ON) (mΩ) VGS=10V Typ.	RDS(ON) (mΩ) VGS=10V Max.	VGS(th) (V) Min.	VGS(th) (V) Max.	Bvdss (V)
MDD12N60F	Active	Single	TO-220F	N	±30	-55 to 150℃	12	0.53	0.75	2	4	600

Part Number

Product status

Number of
Functions

Package

Type

V_GS(V)

Junction Temperature

I_D(A)

RDS(ON) (mΩ) VGS=10V
Typ.

RDS(ON) (mΩ) VGS=10V
Max.

VGS(th) (V)
Min.

VGS(th) (V)
Max.

Bvdss (V)

MDD12N60F

Active

Single

TO-220F

±30

-55 to 150℃

0.53

0.75

600

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
MDD12N60F	TO-220F	TO-220F		50PCS/管 5K /箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

MDD12N60F

TO-220F

50PCS/管 5K /箱
