Product Center

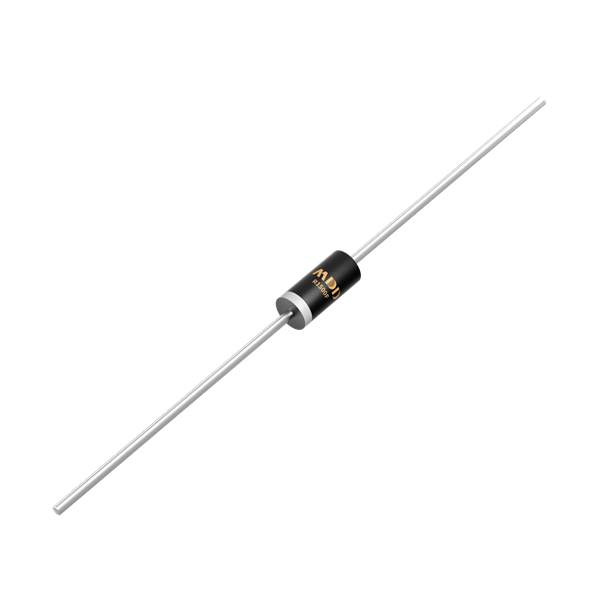

R1500F

Status: Active

Package Type:

DO-41/DO-15

Packing Info:

5K/盒 50K/箱

Category:

High voltage rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Peak Fwd. Surge CurrentT=8.3ms I_FSM(A)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Maximum Recovery Time Trr（ns）	Package	Junction Temperature
R1500F	Active	Single	1500	0.5	30	2.5	0.5	5	500	DO-41/DO-15	-65~175

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Peak Fwd. Surge CurrentT=8.3ms
I_FSM(A)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Maximum Recovery Time
Trr（ns）

Package

Junction Temperature

R1500F

Active

Single

1500

0.5

2.5

0.5

500

DO-41/DO-15

-65~175

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
R1500F	DO-41/DO-15	DO-41/DO-15		5K/盒 50K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

R1500F

DO-41/DO-15

5K/盒 50K/箱
